Reliable lighting for your project or event

The TMLT Series, built from robust galvanized steel with anti-corrosion protection, excels on job sites and remains quiet for events. TMLT1280 features four adjustable LED lamps (1280W), while TMLT1920 boasts six lamps (1920W). Hybrid and Solar models extend run times. Notable features include a hydraulic winch and telescopic vertical galvanized mast.

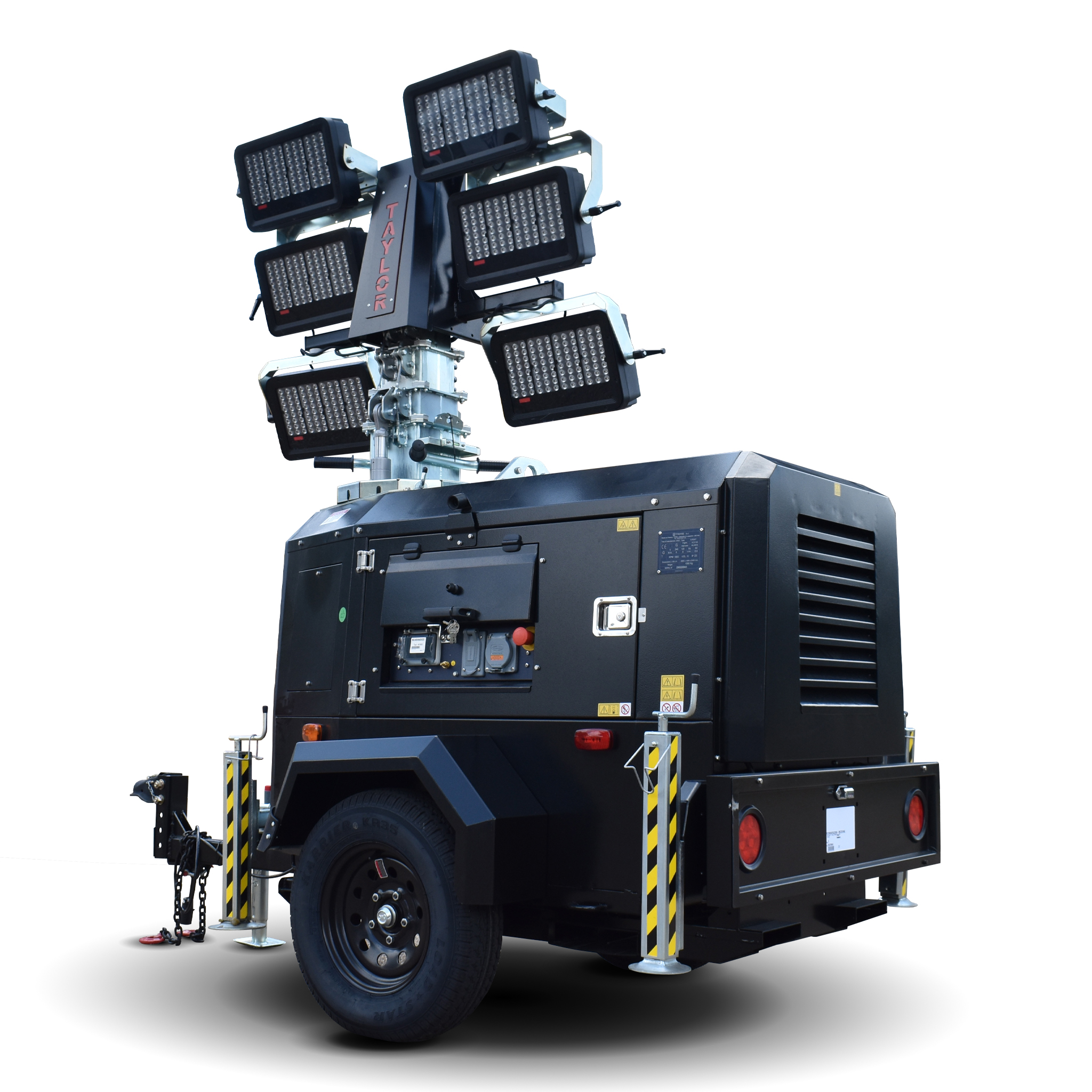

TMLT Series

LED Light Towers

Forged from heavy-duty galvanized steel with a robust anti-corrosion powder coat, the TMLT Series seamlessly transitions from rugged job sites to serene events. The TMLT1280 tower showcases four high-efficiency LED lamps (1280W), while the TMLT1920 flaunts six lamps (1920W). Hybrid and Solar models extend run times with diverse fuel sources. Hand-adjustable LED lamps, fortified by heavy-duty brackets, offer flexibility. Key features include a hydraulic winch, a Deep Sea Controller with a 16-event seven-day digital timer, and a telescopic vertical galvanized mast.

Applications

Construction Sites

Emergency Response

Rural Areas

Gas & Oil

Special Events

Military

Specs

Model TMLT1280 TMLT1920 MLTX Hybrid TMLTX Hybrid Lithium TMLTX Solar
Mast Height 26' 27' 28' 26' 25'
Light Type LED LED LED LED LED
Light Output 1280W (320Wx4) 1920W (320Wx6) 1440W (360Wx4) 1440W (360Wx4) 640W (160Wx4)
Engine Model Kubota Z482-E4B Kubota D1105 Kubota Z482 Yanmar L70A N/A
Emmision Regulation Tier 4 Tier 4 Tier 4 Tier 4 N/A
Fuel Capacity 46 Gallons 30 Gallons 34 Gallons 68 Gallons N/A
Run Time 200 Hours 71 Hours 450 Hours 731 Hours N/A
Sound Level @ 23' 65 dBA 68 dBA 68 dBA 65 dBA N/A
Stowed Dimensions 73”L x 56”W x 98”H 101”L x 54”W x 98”H 98”L x 58”W x 98”H 92”L x 57”W x 98”H 138”L x 87”W x 109”H
Operating Dimensions 96”L x 107”W x 335”H 101”L x 100”W x 335”H 98”L x 79”W x 335”H 92”L x 107”W x 315”H 165”L x 115”W x 335”H
...

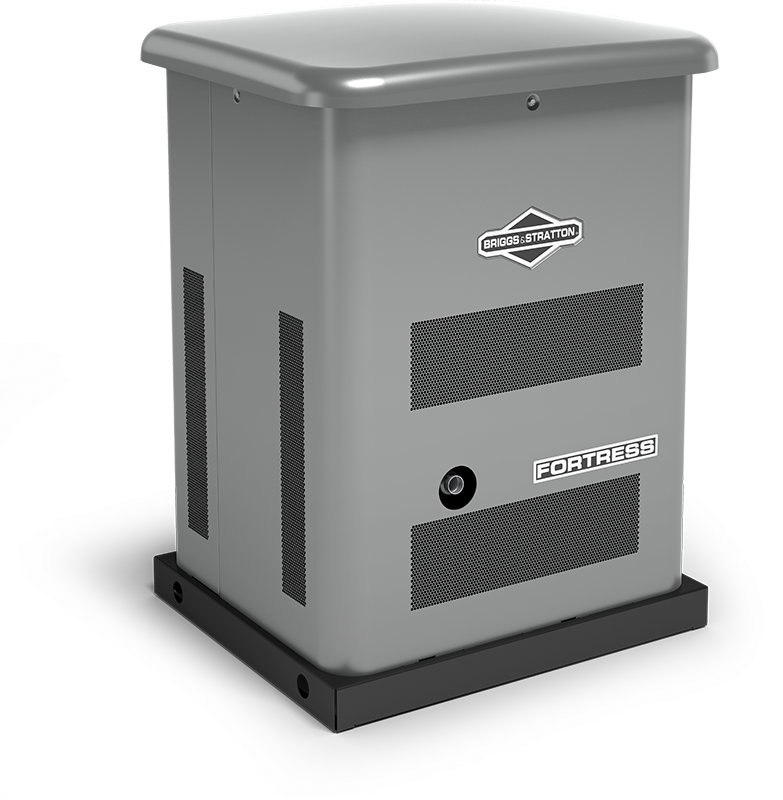

12KW Fortress
Residential Standby

Engine

627cc Briggs & Stratton Vanguard™

Fuel Type

LP or NG

Dimensions

28" X 26.1" X 37.2"

Specification Sheet
...

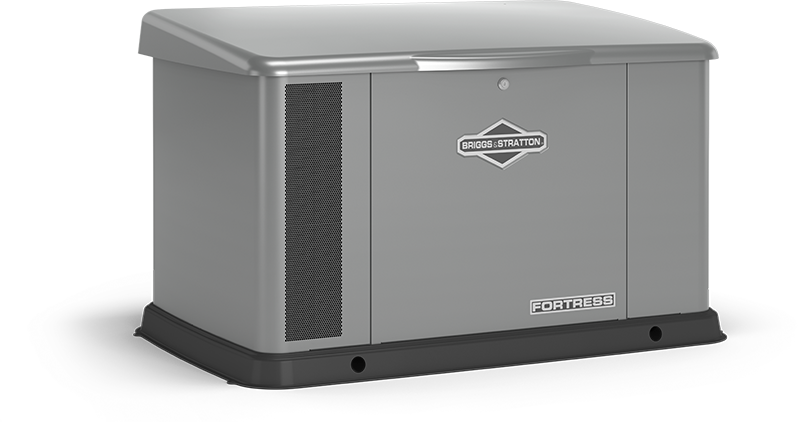

20KW Fortress
Residential Standby

Engine

993cc Briggs & Stratton Vanguard™

Fuel Type

LP or NG

Dimensions

50.5" X 33.8" X 30.6"

Specification Sheet
...

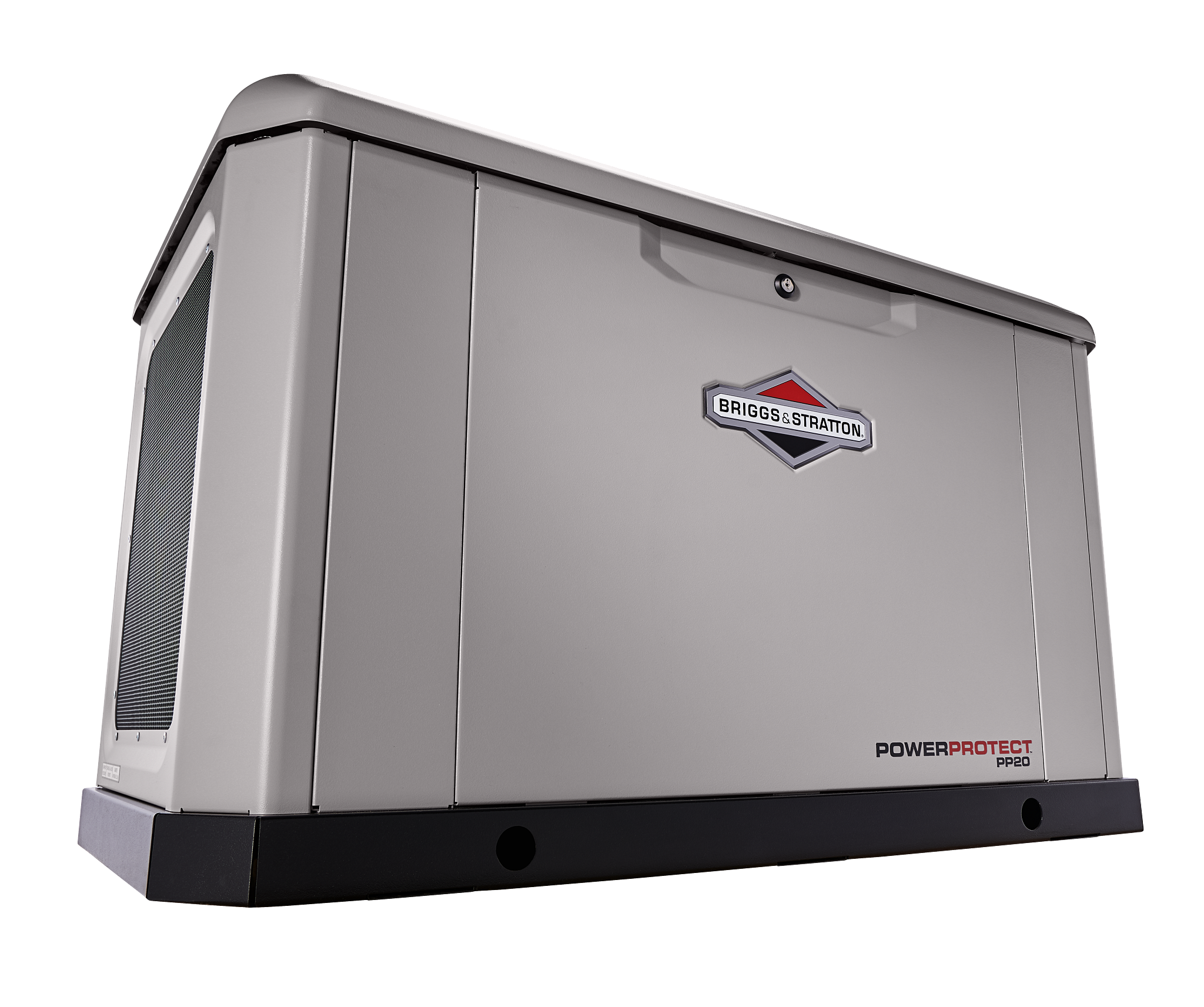

20KW Power Protect
Residential Standby

Engine

993cc Briggs & Stratton Vanguard™

Fuel Type

LP or NG

Dimensions

50.5" X 33.8" X 30.6"

Specification Sheet
...
26KW Power Protect
Residential Standby

Engine

993cc Briggs & Stratton Vanguard™

Fuel Type

LP or NG

Dimensions

46.5" x 26.8" x 28.4"

Specification Sheet
...

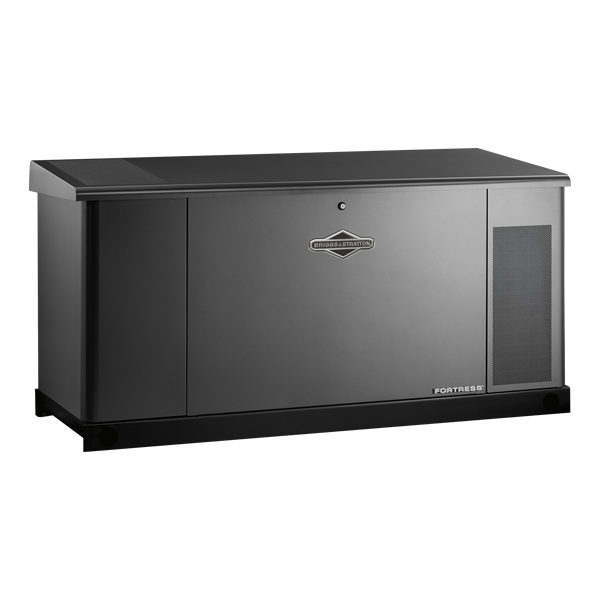

30KW Fortress
Residential Standby

Engine

1587cc Briggs & Stratton Vanguard™

Fuel Type

LP or NG

Dimensions

71" X 32.3" X 37"

Specification Sheet
...

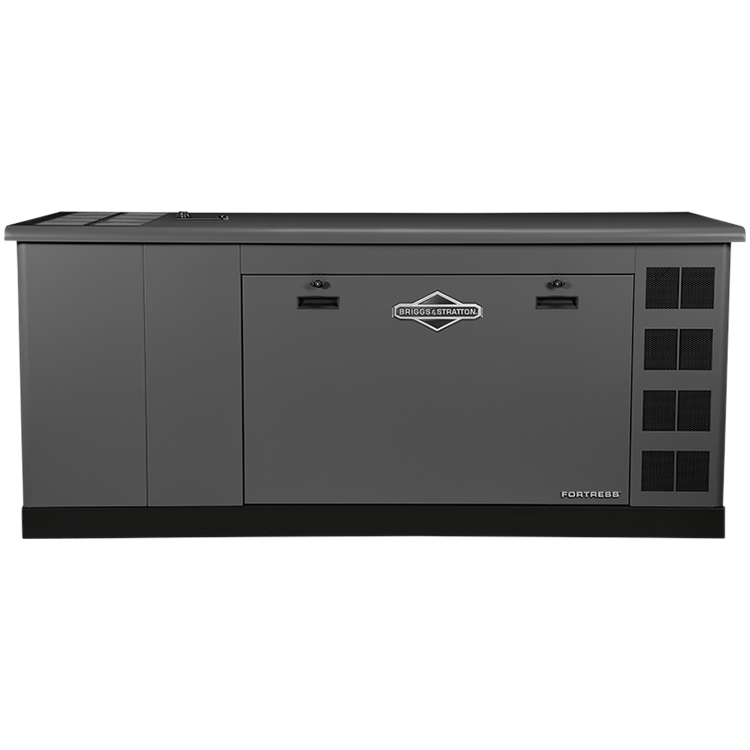

48KW Fortress
Residential Standby

Engine

4301cc PSI

Fuel Type

LP or NG

Dimensions

91" X 39.4" X 41"

Specification Sheet

Additional Features

  • Dedicated Breaker Protected Circuits for Each LED Lamp
  • Galvanized Vertical Mast
  • Convenience Receptacles
  • Digital timer with Automatic Dusk to Dawn Operation
  • Rugged 10 Gauge Powder Coated Steel Enclosure
  • Galvanized Fenders
  • 5 Year Warranty
